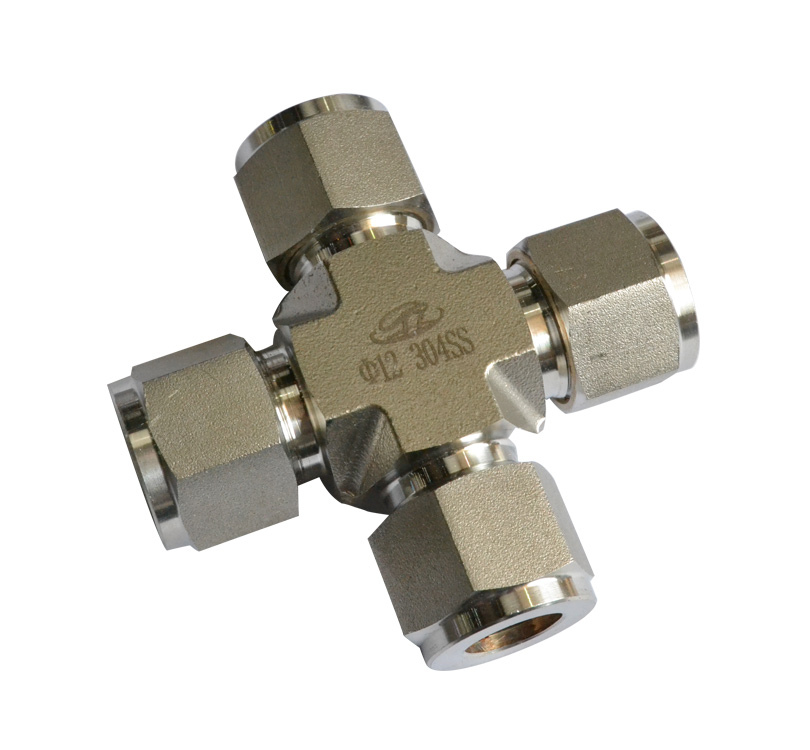

四通中间接头
四通中间接头
| 材质：不锈钢 | 管厚：10 mm | 直径：8 mm | ||||
| 产地：江苏金湖 | 品牌：华升 | 型号：HS-JT | ||||
| 类型：横向性 |
产品特性：不锈钢四通中间接头,304中间接头,四通中间接头厂家,中间接头
产品简介：材质:不锈钢 ;管厚:10 mm;直径:8 mm;产地:江苏金湖 ;品牌:华升 ;型号:HS-JT ;类型:横向性
金湖县华升计量仪器有限公司
详细介绍：
| 连接英制管道 | ||||||||
| 型号 | 管外径O.D. D（inch) |
d Min |
宽度 | A | B | I | L | |
| h(inch) | H(inch) | |||||||
| 1 | 1/16 | 1.27 | 3/8 | 5/16 | 8.63 | 10.92 | 14 | 18.03 |
| 2 | 1/8 | 2.28 | 3/8 | 7/16 | 12.7 | 15.24 | 157.74 | 22.35 |
| 3 | 3/16 | 3.04 | 1/2 | 1/2 | 13.71 | 16 | 18.54 | 25.14 |
| 4 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.55 | 26.92 |
| 5 | 5/16 | 6.35 | 5/8 | 5/8 | 16.25 | 18.54 | 22.35 | 29.71 |
| 6 | 3/8 | 7.11 | 5/8 | 11/16 | 16.76 | 19.3 | 23.11 | 30.48 |
| 8 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.9 | 36.06 |
| 10 | 5/8 | 12.7 | 15/16 | 1 | 24.38 | 21.81 | 28.7 | 38.8 |
| 12 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.81 | 29.71 | 39.87 |
| 14 | 7/8 | 18.28 | 1-3/8 | 1-1/4 | 25.9 | 21.81 | 34.54 | 44.7 |
| 16 | 1 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 |
| 连接公制管道 | ||||||||
| Part NO. | 管外径O.D. D（mm) |
d Min |
宽度 | A | B | I | L | |
| h | H | |||||||
| 3M | 3 | 2.4 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| 6M | 6 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27 |
| 8M | 8 | 6.4 | 15.9 | 16 | 16.2 | 18.6 | 22.4 | 29.9 |
| 10M | 10 | 7.9 | 20.6 | 19 | 17.2 | 19.5 | 25.9 | 33.5 |
| 12M | 12 | 9.5 | 20.6 | 22 | 22.8 | 22 | 25.9 | 36 |
| 16M | 16 | 12.7 | 23.8 | 25 | 24.4 | 22 | 26.9 | 37 |
| 18M | 18 | 15.1 | 27 | 30 | 24.4 | 22 | 28.2 | 38.3 |
| 20M | 20 | 15.9 | 34.9 | 32 | 26 | 22 | 34.5 | 44.6 |
| 25M | 25 | 21.8 | 34.9 | 38 | 31.3 | 26.5 | 36.8 | 49.1 |
